UNSTITCHED COIF – FINISH! MATERIALS AND TECHNIQUES

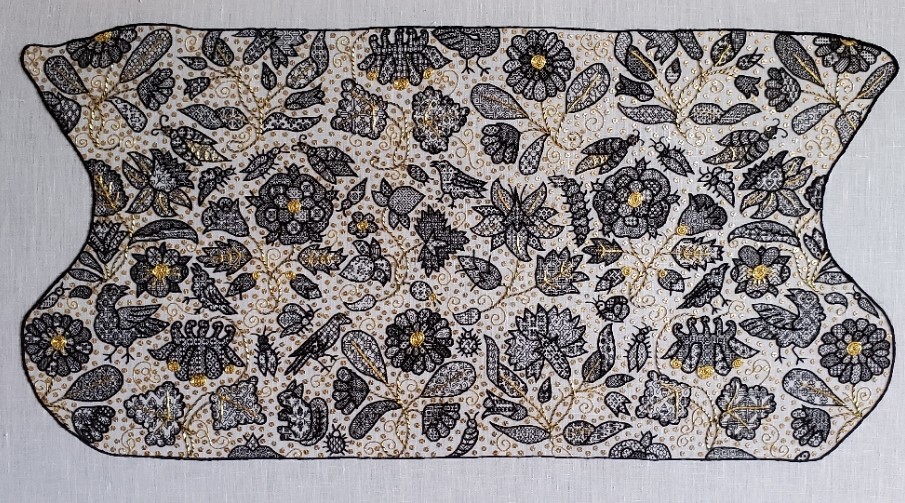

here have I been these past weeks? Stitching away in a sweatshop of my own making. That may sound tedious, but it was actually tons of fun. I had to drone away with intent to meet the completion deadline for the Unstitched Coif project. I’ve completed the embroidery, including some small repairs. All that’s left is neatening up the back a bit, hemming to final size, and shipping.

This is the first of two posts on finish. The next one will present details and commentary, motif by motif. But I still have work to do before mailing, so that will have to wait for another morning.

Yes, that little dip in the upper left is in the original, too. And yes, it does bother me, but (near) verbatim is near verbatim, so I kept it instead of extrapolating what should have been there.

Materials:

  • 2.25 spools of Au Ver a Soie’s Soie Surfine spun silk for the fillings, purchased from Needle in a Haystack.
  • 1.3 hanks of Golden Schelle’s black four-ply spun silk embroidery floss for the motif outlines. It’s worth noting that this is a hand-dyed product, prepared from a historically documented iron/tannin recipe, and in 500 years will probably have eaten itself to death, exactly as black threads in museum artifacts from the 1500s have deteriorated over time. I love the minor color variation and soft black produced by their small-batch method.
  • About 0.25 hank of Tied to History’s Allori Bella silk in black – a reeled filament silk for the heavy perimeter outline. This one claims to be four-ply but is hard to separate. Each ply appeared to be made of three strands. I ended up using two of these constituent strands at a time, which means I got six working threads out of a length of the four-ply.
  • About 0.25 of a hank of Japanese Gold #5, from the Japanese Embroidery Center in Atlanta, Georgia.
  • One skein of six-strand Cifonda Art Silk (probably rayon) in a light gold color. I bought this in India, as part of a large lot for short money.
  • 1.9 strings of 2mm gold tone paillettes, from General Bead. The description says there are 1000 spangles per string. I doubt that. Probably more like 500. Still, that’s a lot of spangles.
  • John James needles – #12 beading needles (outlines, spangles, couching), and #10 blunt point beading needles (fills, whipping). The #12s were labeled as being blunt points, too, but they wre far sharper than the #10s. Many of the #10s, because I kept bending them as I worked, and a bent needle is harder to aim accurately.
  • Mani di Fati’s 72×74 count linen – as recommended by our Fearless Leader, Toni Buckby.
  • Toni’s elegant rendition of the Victoria and Albert Museum’s “Unstitched Coif”, Accession T.844-1974, shared at this link by her special permission.

Stitches Used:

  • Fills – mostly double running stitch, with occasional digressions into “Heresy Stitch” (aka half back stitch), back stitch, and wild improvisation when lack of real estate and undulating edges required shoehorning motifs into tiny spaces. With one exception they are all done over 2×2 threads. When I started I thought that over 3×3 might be better, but my brain and hands are so trained to work 2×2 that it drove me nuts, so I reverted to the smaller size. But I didn’t bother ripping out the completed bit. Have fun hunting for it.
  • Motif outlines – Reverse chain. A probable departure from historical usage. Carey, in her excellent book Elizabethan Stitches calls out twisted reverse chain as having documented use in 16th century historical artifacts, but mentions plain old reverse chain as having no provenance in that time. Which does seem very odd to me.
  • Leaf veins and other gold details overlaid on top of black stitching – Simple couching over a double strand of the gold. Ends plunged. Plunging is another deviation from the historical. I have been schooled now by several people that is a practice common to the mid 1800s, and not before. In the 1580s gold ends were neatly tucked under. Look at all the gold I used, and especially at the short lengths. I voted to save my sanity.
  • Stems – Also simple couching, but whipped with two strands of the black Soie Surfine. Where the stem extends a leaf vein, a single line of couching was laid down, but only the stem part was whipped. I began doing this after I finished the first flower, complete with background spangles, and the stems disappeared in the riot of gold.
  • Spangles – I affixed my paillettes with three straight stitches each, hopping all over like a water drop on a griddle. Since I almost never strand over this was painful to do, but the ground’s dense weave and light color of the Art Silk convinced me that unless the piece was backlit, it would not be seen. Again, a sanity move.
  • Perimeter outline – Yet another historical departure. I originally wanted to do this in Ladder Stitch, but the Allori silk isn’t robust enough to display stitch detail, and the modern severe blackest-black color makes such attempts moot. So I went for double reverse chain, also called Heavy Chain in the RSN’s on line stitch reference, worked as close and small as I could to make a fluid, heavily raised dense line.

Fill Sources:

I used two sources. One is the set of sourced historical redactions Toni provided on the group’s official website. They represent about 18% of the designs I used.

But now is true confessions time, and certainly not a surprise to those who know me, although I’ve avoided mentioning this in our group’s Zoom meetings. About 82% are from my own free books – Ensamplario Atlantio, Volumes I and II, along with the not-yet released Volume III that I am working on right now. (I was circumspect because this project is Toni’s. I’m just one of the foot soldiers. The glory and renown belong to the general.) My 82% includes an estimated 2% on-the spot improvs I came up with to get out of a jam.

Why a jam? Because early on in this project I declared that I would not be repeating fills between motifs. A flower could have multiple petals in the same pattern, or a bug might have matching wings in a single pattern, but once that pattern hit the cloth and the motif was completed, it was “burned” and not used again on the rest of the piece. That made some anxious moments because there are A LOT of shapes to fill, especially small jelly bean sized ones. More than once I made an inadvertent duplication and rather than ripping out the work, had to mod the second showing so it would be distinct. Or I had to fill a particularly challenging tiny spot, and just winged it because nothing I had would show well there.

What’s Left to Do:

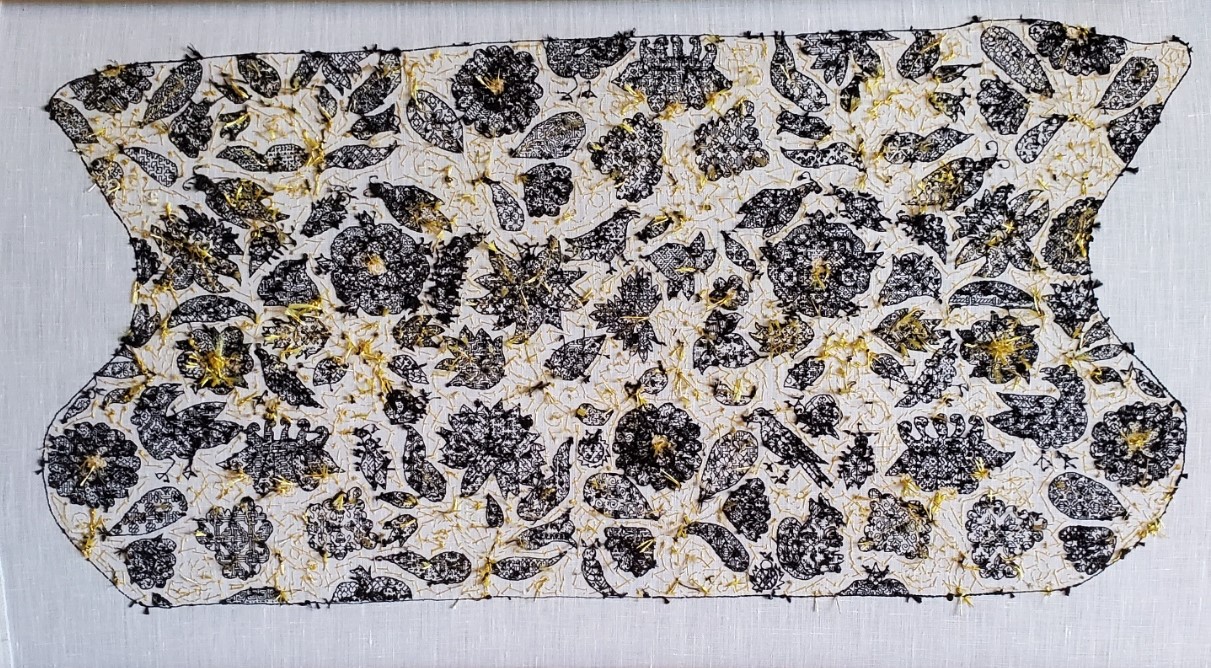

Taming this shameful back. Mostly tacking down those annoyingly fraying gold ends, to the best of my ability. Then hemming to the final dimensions required for display. Nothing fancy, no drawn work hems or anything like that.

And of course the second post in this series. But for now, off to lion tame my dandelion mat of frizzy gold ends.

9 responses

  1. variedthreads's avatar

    Simply FABULOUS. Thanks for bringing us along on this fascinating journey.

  2. Elaine's avatar

    Oh Wow. Congratulations on achieving a truly wonderful piece of needle art.

  3. Jill Kipnis's avatar

    Well done I am on the last hurdle! Like you I have enjoyed the project and can’t wait to see all the wonders created together

    1. kbsalazar's avatar

      I’m up to hemming, and figuring out how to safely package it for shipping. Due to the gold, folding is right out. I have to find nested tubes or a flat pack. Or engineer my own from old sheets, bubble wrap, cardboard, brown paper and tape.

  4. virtuosewadventures's avatar

    I’ll be very interested in how you pack it – always so tricky with embroidery!

    1. kbsalazar's avatar

      Right now I am thinking of both labeling and packing.

      For a label my idea is to take a narrow strip of Tyvex, no wider than my folded over hem and write my name and contact info on it. Then sew a tiny baby button onto the back side hem of the piece, and make a slit in the Tyvex strip to serve as a buttonhole. That way it can be removed for photos and display.

      For shipping, I don’t want to fold or roll. All that metal thread is a complication. I will lay it flat and wrap it in the tattered cotton pillowcases I have been using as backlight-drapes on the frame. Then I will package that in bubble wrap plastic, making sure that the wrap is sealed against moisture. I will cut pieces of sturdy cardboard larger than the plastic wrapped bundle, slip a paper with shipping and return info on top, and sandwich both between those pieces. Heavy packing tape to seal the edges. I may go one step further and then use brown paper to wrap the whole package, marking it with Fragile, Top Stack Only, Do Not Bend, and the required shipping and customs labels.

  5. JustGail's avatar

    WooHoo on the finish!! Not only schedule, but not repeating any fills…wow, what a brain stretcher.

    1. kbsalazar's avatar

      Thanks! 42 years of juggling deadlines for a living does leave one with coping skillz. Nice to use them for something other than the benefit of an employer. 🙂

  6. Unknown's avatar

    […] Completed coif – discussion of my materials, sources, and method. Includes a writeup of the stitches used, and why. […]
