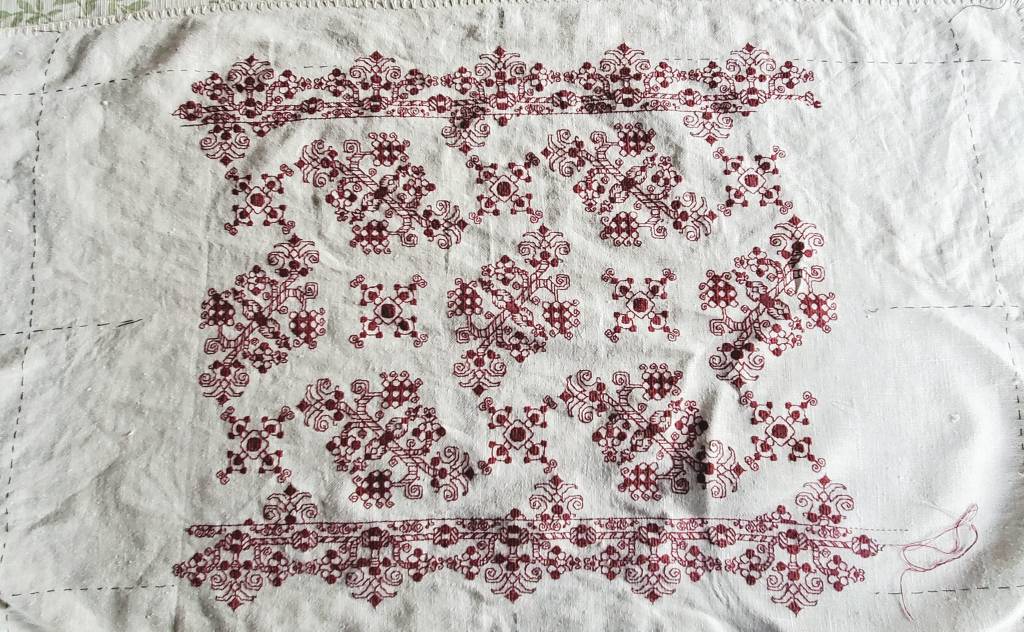

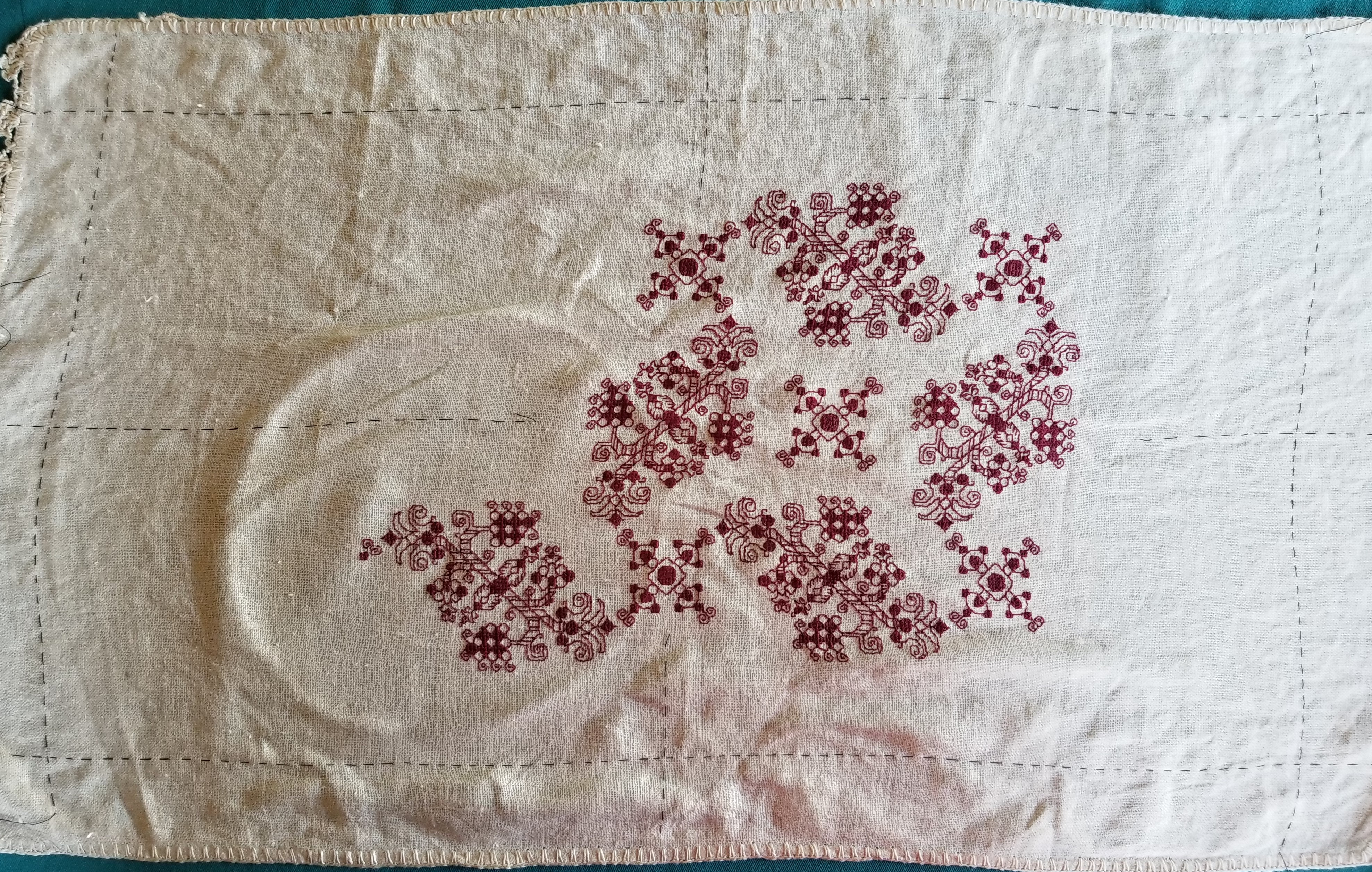

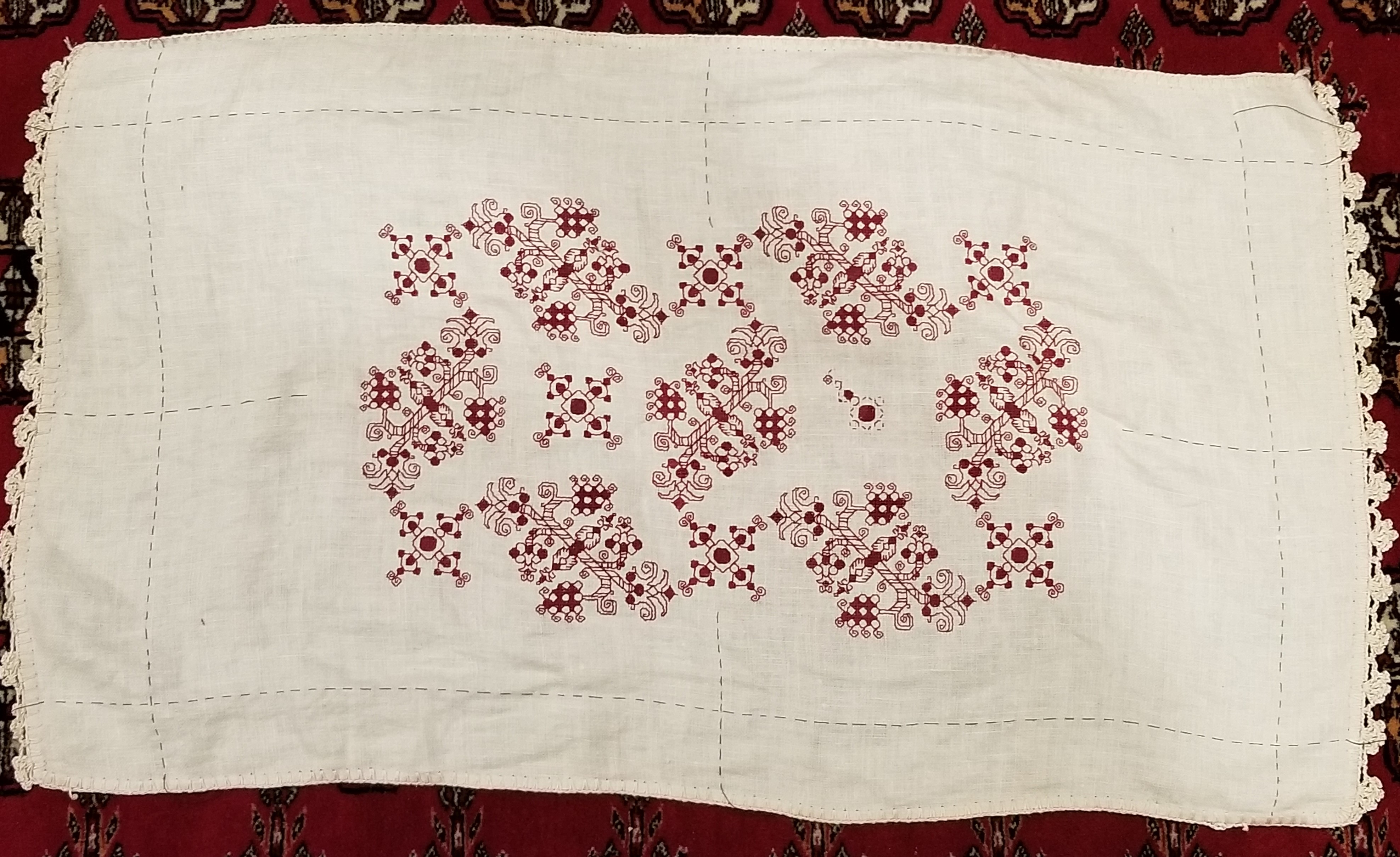

I continue along with what has been nicknamed The Dizzy Grapes sideboard scarf. I successfully rounded the second group of main motifs, and am up to working the small one in the center of the field.
As you can see, there’s plenty more to stitch, including the border. And you can also see the slow rise problem I described earlier. The cloth is flipped from the last set of photos, but the repeat on the right is one unit skew to the one on the left – an inevitable complication of this design.
So. That center unit. Given that it doesn’t align perfectly with the previous one, how to go about placing it. The most obvious way is to pick an easy to spot point on the established stitching, and now that I’ve done one, just count over the same number of stitches to a similarly distinctive spot on the motif to be stitched, then just start in.
But I’m lazy, know that long stretches of counting blank linen are one of my weaknesses, and given the long span, extreme variation in the thickness of this linen’s threads, and frustration after several false starts, I decided to try something different.

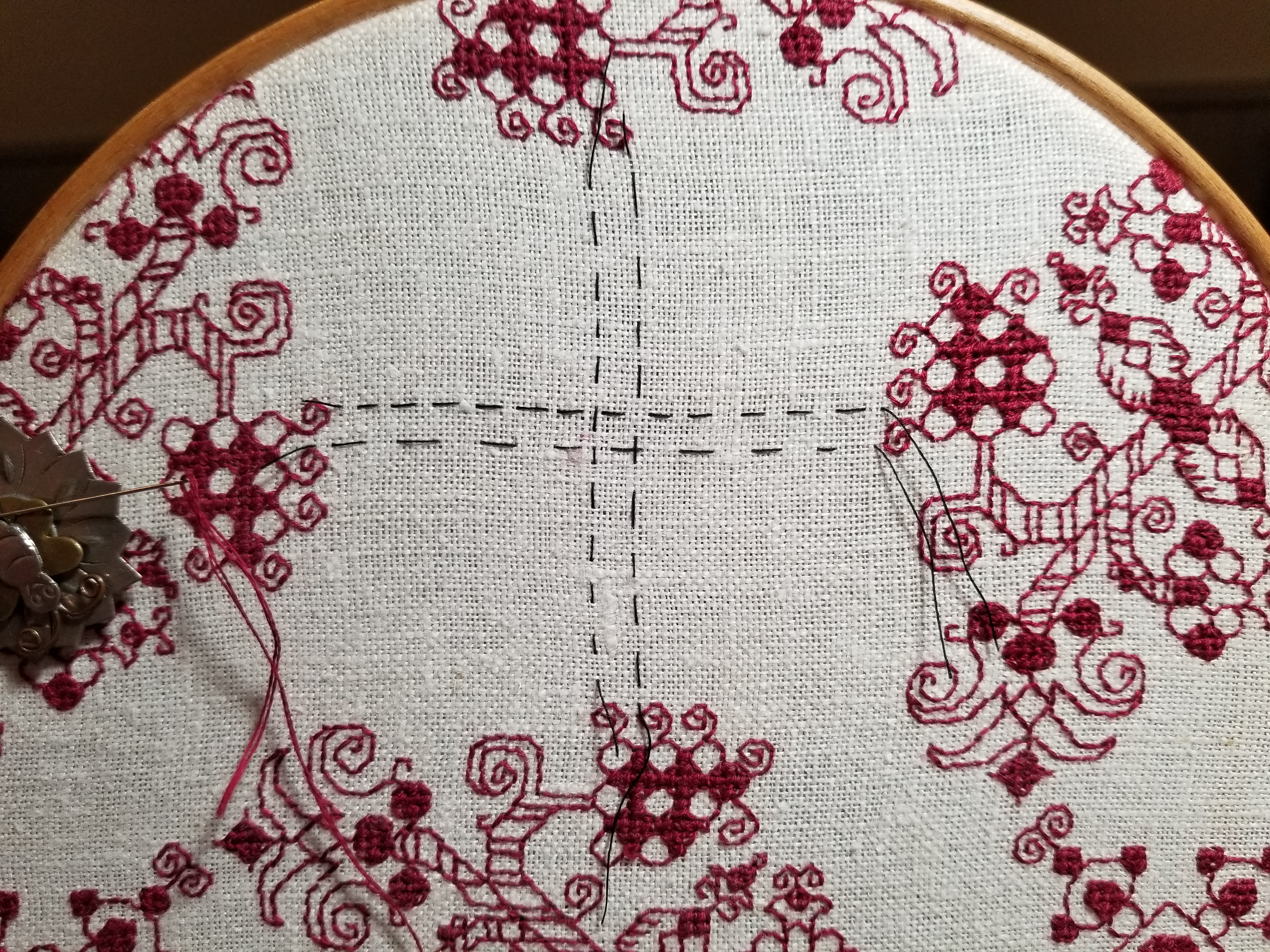

Its easy to determine the center point of the large floral motifs. It’s the centermost stitch in the dark center “knot” around which the branches are symmetrically inverted. That aligns with the dark stripe in the grape motif that’s closest to its stem. But those centers are all offset from each other, so just using a simple ruler or single straight edge is problematic. Instead I picked the same spot on each of the four motifs that bordered the field in which I wanted the smaller X pattern to appear, and quick basted a line across that field. One basted line for each big floral produced a 3×3 area. The center unit of that 3×3 area became the center of the large dark spot in the middle of the X pattern. (Yes, if you zoom all the way in you’ll see that one of my basted lines was off by one thread, but I compensated).
You don’t see the basted lines on the full piece, above because once I did that centermost stitch, I removed them. I never stitch over my guidelines, I always snip them away from the work as I approach.
I did this for the other placement of that center X, too, but I didn’t think to document the process. I did try the count in and start method for the second one. You may be able to see the remains where I picked out my three false starts, but the basted line method turns out to be vastly quicker, less fraught, and more accurate.
I am still aiming for full coverage – not just these two repeats centered on the otherwise bare cloth. Now its time to go into hypergear and finish designing the companion border. Once I’ve got that and have my distance from repeat worked for the long sides, I can establish that line and then work my field up to it with confidence.
I’m working along happily on my grapes wine-opening placemat, using the motif I redacted from the 17th century Hermitage artifact.

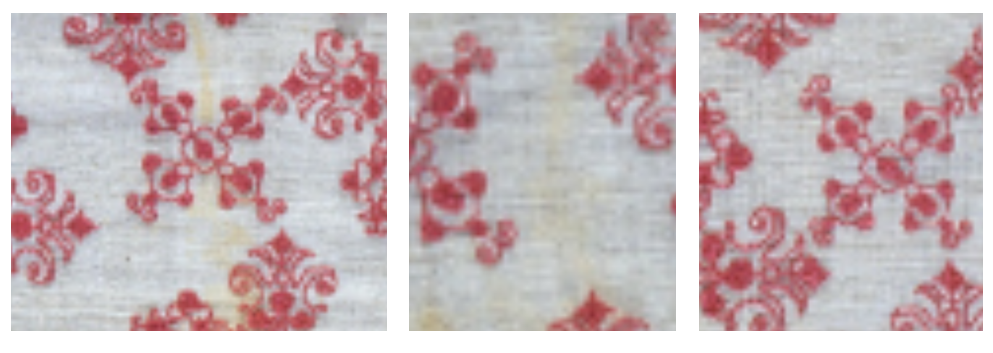

One big problem with my graphing of the design is that the original doesn’t stick to count on the placement of the individual large and small motifs. While each motif is worked true to count, their scattering across the piece is a series of eyeballed guesses, with no two offset by the same spacing. Here are a couple of enlarged snippets from the museum original that showcase the variance:
However, when I graph up a design I try to “regularize” it – often averaging the deviations among many repeats to create an easy to replicate canonical version of the design. In T2CM I note the degree to which I normed the repeat in each redacted design, so those who are interested in total veracity know that I’ve done a bit of tinkering, and can refer back to the original and determine if that level of deviation complies with their intent.
I played with the two main elements of this all-over repeat until I hit upon something that was regular and that accommodated the use of the smaller motif both as the “pinwheel” spinning off the larger grape/floral motif, and to occupy the center of the circle formed by the grape/florals. And I began stitching.
Now the placement I ended up using does have a flaw. The march of the grape/florals is offset one unit each iteration by the pinwheeling. That means that in the sample above, the right-most grape/floral presents one unit ABOVE the line established by the one immediately to its left. This is the problem that the original stitcher tried (with limited success) to combat by eyeballing placement rather than sticking to the count. Even with their best effort, the original artifact’s overall design does migrate a bit in the same way, like a time lapse photo of a rising sun, each pattern repeat appears ever so slightly above the one to its left.
This isn’t much of a problem for a large field design with no edges that matter, but for a smaller work the migration does become evident. Especially if an edging or hard border is used.

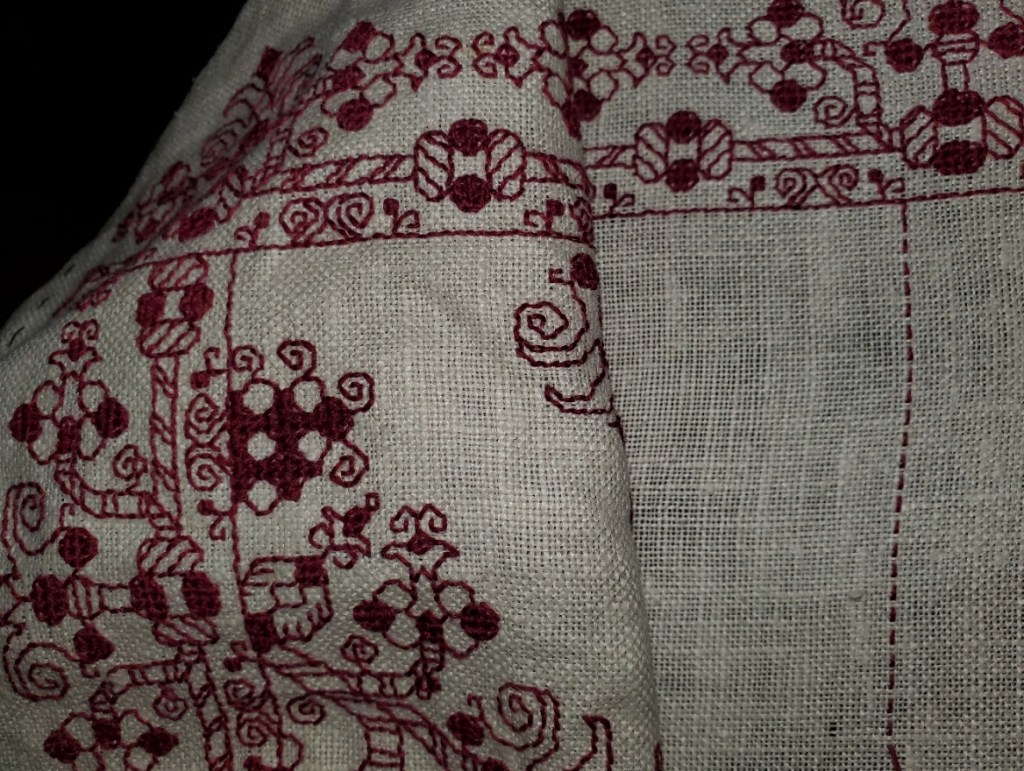

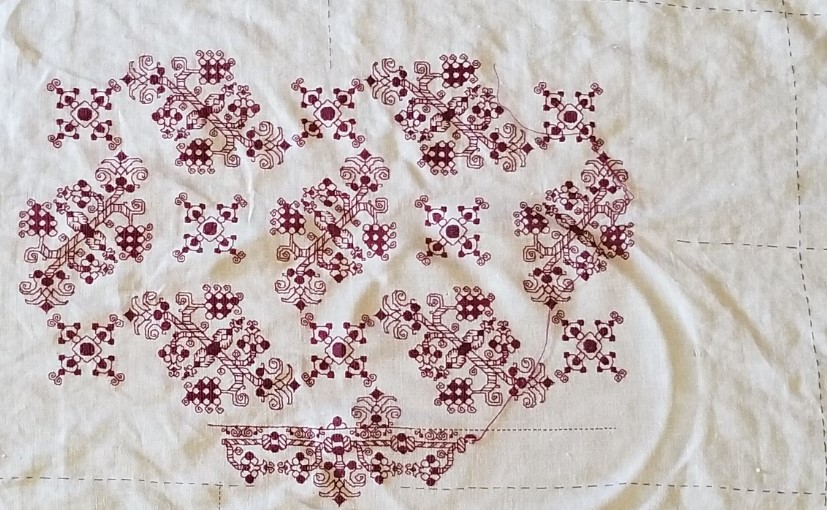

And I want to use a hard border. I’ve designed a companion border for this field, to be worked in the same color as the rest of the piece. Or I should say I’m still in the process of designing one because I haven’t settled on exactly the **right thing** yet. But this is getting close. I’m using the cinched rope visual trope contemporary with the field design, and incorporating elements of the grape/floral with it.
Yes, it’s blurry. It’s not ready for prime time yet, but you can squint and make out the basics – the rope, the pendant flowers borrowed from the field, and the line above running parallel to the rope. That line will save me, and whatever variant of this edging I end up using will include it. I will work the edging in strips, butting the corners instead of mitering them (a very historically accurate way of dealing with pesky corners), doing it in the neighborhood of the basted black guideline threads. Then I will work the field pattern up to and touching the edge line.
The rising sun anomaly will still be there, but the piece as a whole should be both bound and defined by the border. Or so I hope. Stay tuned! It’s going to be a while before I get to actually stitching that part. All the more time to refine my edging graph. 🙂
Fueled by a week at the beach; hot, dry, and windy weather; paella, sufficient wine, and other indulgences, my grape-adorned sideboard placemat grows.

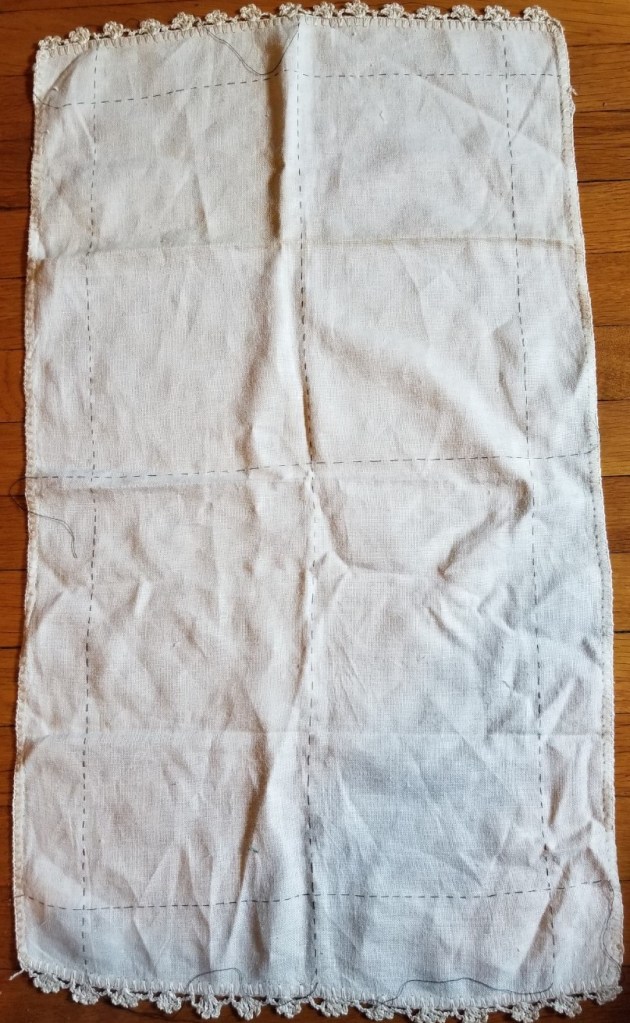

First an observation on the ground cloth itself. I had intended to preserve the simple crocheted edging that this piece of well worn linen came with. But as you can see – “loving hands at home” were at work when this remnant was rescued from a larger prior incarnation, and the edges of the cloth are far from parallel. The thin black lines are my basted guidelines, done on the weave to mark the absolute center, and also about 1.5 inches in from the edges. Obviously they are not parallel to the edges. The short sides are especially skew:
Eventually I will have to trim off the edges and hem. Then possibly finish with a bit of simple needle lace. I haven’t done that in a while, so it should be an interesting adventure. But for now, I will stick to the inside of the designated rectangle. I’m still contemplating designing a companion edge pattern to the field of the original artifact, so I won’t get too close to those basted lines, just to make sure I have ample room for both the edging and the field.

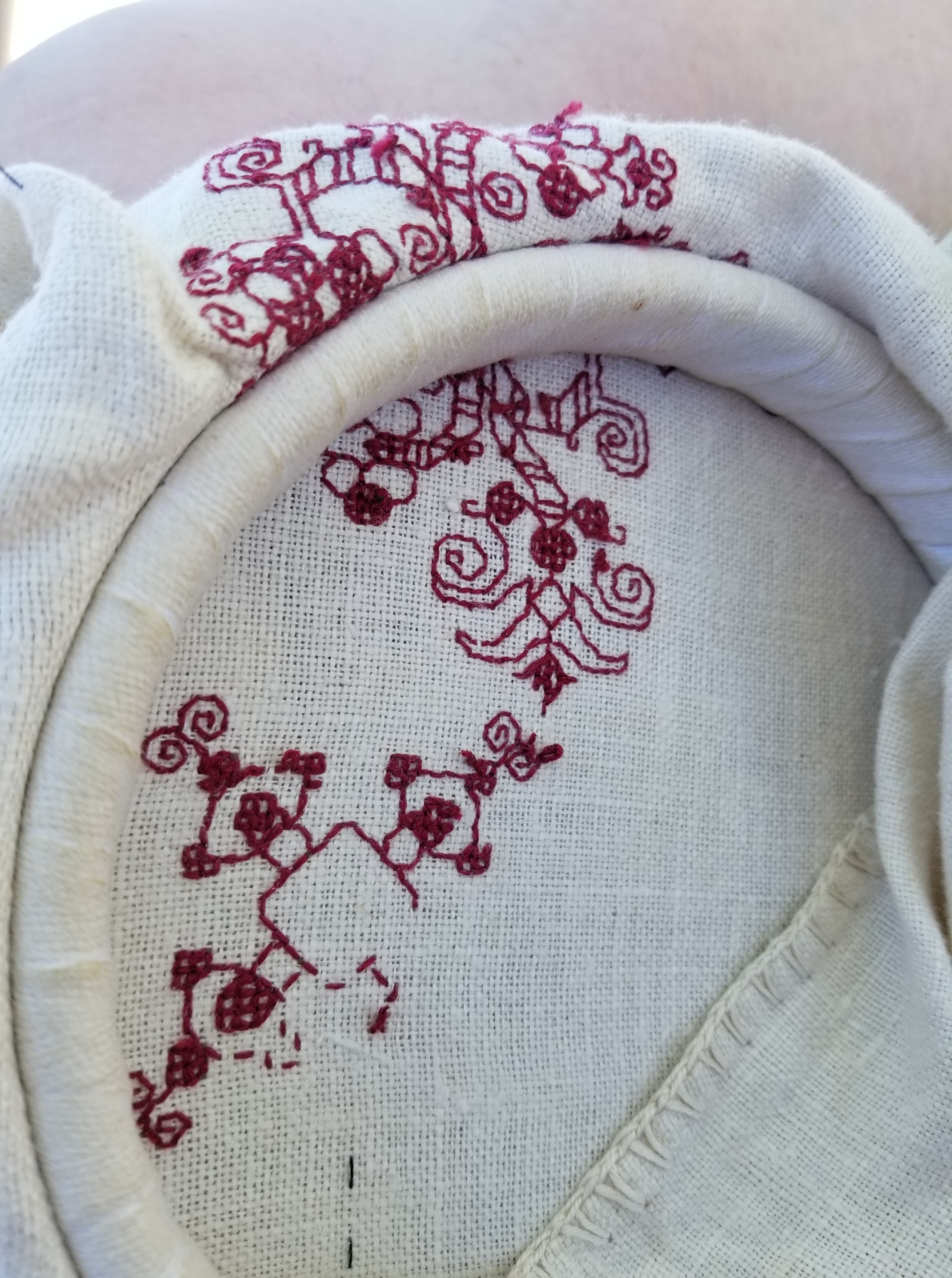

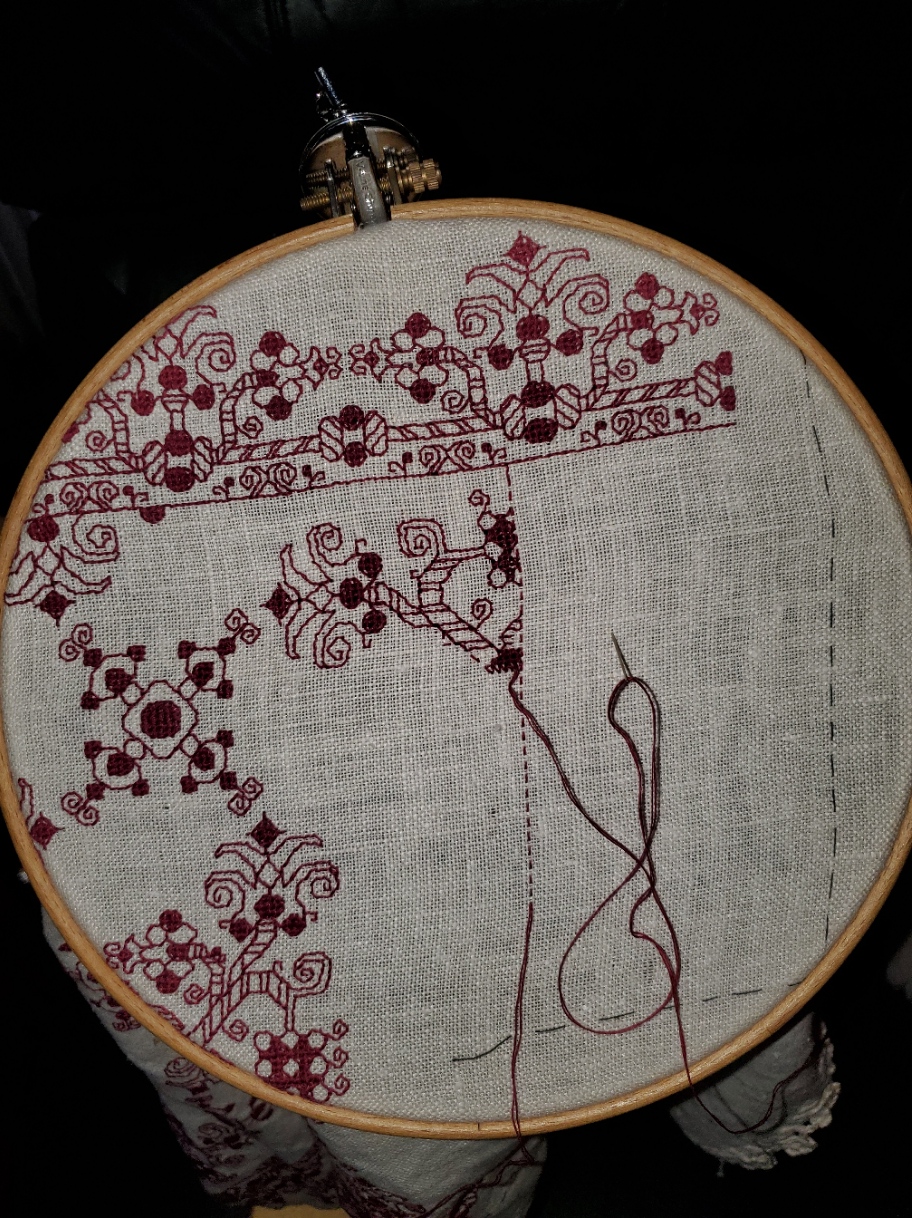

So, that being said, I started in the center. Note that I don’t stitch over my basted guidelines – I snip them out as I come close.

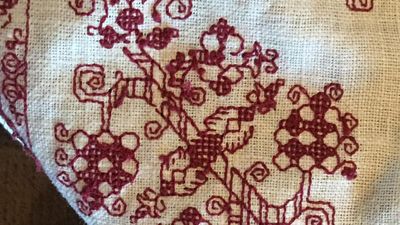

You can really see the even/uneven nature of the ancient linen in the shot above. Yes, I am working it in a hand-held hoop (although I’ll probably switch to my sit-upon later tonight). I’m using plain old DMC six-strand floss, color #615. This piece will become a placemat on my sideboard, where wines are generally opened. The grape motif is fitting, but there is ample chance for spills, and washability is my prime concern. The linen itself is already far from pristine, so a few more stains won’t make much difference, but I didn’t want to use silk or faux silk (rayon), to make care less complicated.
According to the updated notes on the museum photo, the stitches used are double running and an Italian double sided cross stitch. The original has a design that’s truncated around the outer edge, and might have been cut down from a larger work. I do believe that The Ancients were just as practical as we are today. If something wasn’t going to be seen flipped over, it didn’t merit the additional work of making it perfect on both front and back. A bold leap of surmise on my part, but since I have no earlier larger work to repurpose into this sideboard mat, I’m comfortable with not extending the extra effort. Plus, I am doing this entirely for me. I have no intention on documenting it and entering it in any historical needlework exhibit or arts competition.
The variant of the two-sided cross stitch I’m using produces a boxed cross stitch on the front and a square grid on the back. If you zoom in on the original the scrum of stitches does look like a cross in a box. I could have used meshy, either pulled tight or relaxed to go double-sided, or long armed cross stitch (another historically congruent approach), or even satin stitch, but I wanted to try something new. Here’s the back. You can see the little grids where on the front the presentation is solid color.

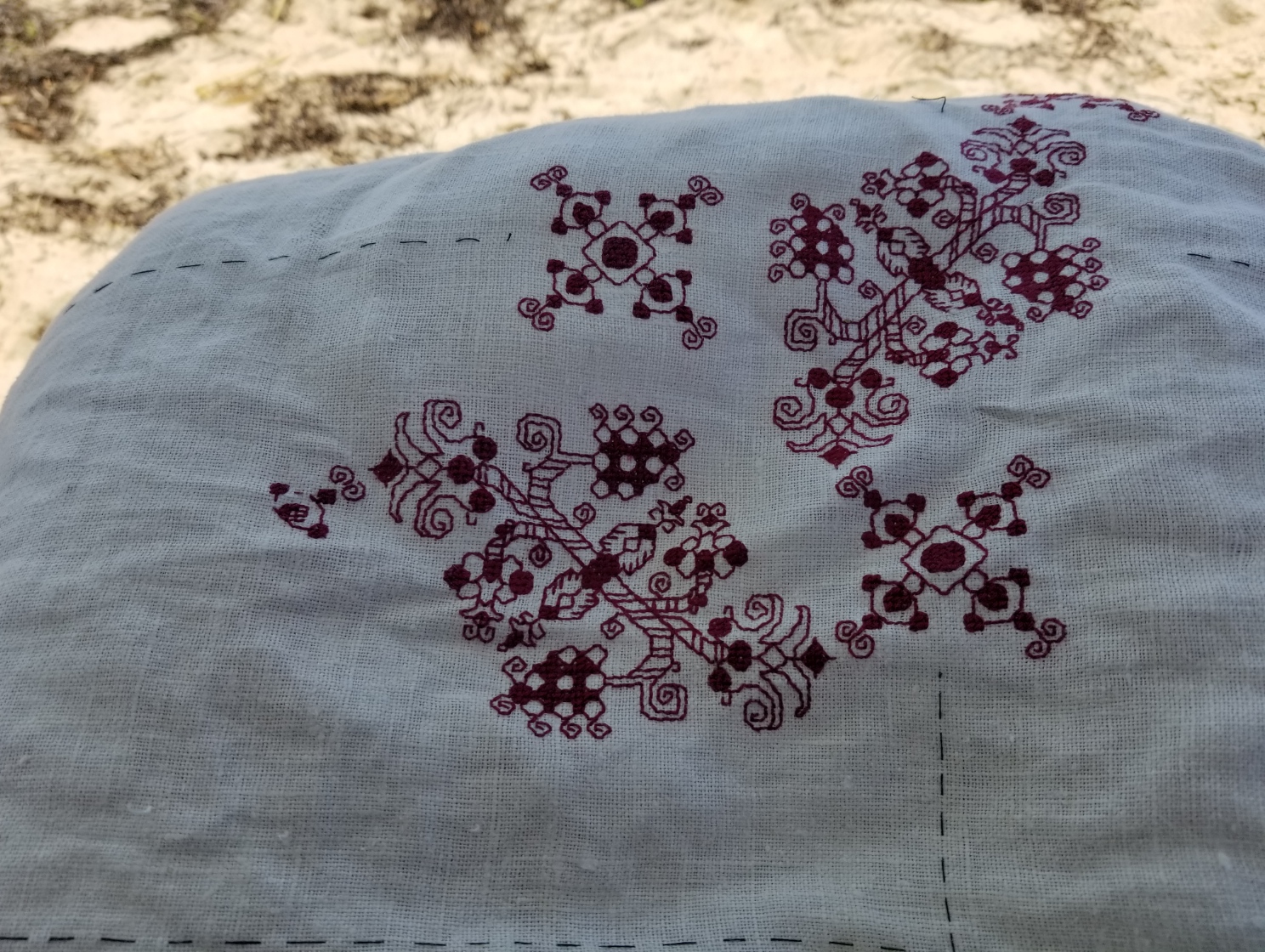

And of course, since nothing can be perfect, especially after all the wine referenced above – this particular iteration of the secondary motif was in the wrong place. I haven’t done it yet, but the whole square has to be picked out. But I made progress none the less. The offending misplaced robot-headed square is mostly unseen over my knee in the general progress shot below. The other two secondary motifs are correctly placed.
I will continue on with this cloth, filling in the additional iterations of the main and companion motifs. Still thinking of doing a companion edging, but treating it as they most often did contemporary with the design, by using butted rather than mitered corners. We’ll see what I come up with…
I’m “off paper” now, mentally rotating/flipping as needed, hence the dizzy title of this post. I like that extra challenge, too.
This design may end up being in The Third Carolingian Modelbook, a project I’ve already begun. But frankly there has been very little uptake of either of my two earlier citation rich for-sale books, and only marginally more from my free releases of mostly original material or from the free pattern broadsides or the SAL on this website. Sales and downloads, yes – but very little actual stitching from any them. It’s disappointing, and I am not sure I want to take the time if folk are just looking for shelf fodder and not actual stitching inspiration.
Have you done something from my pages? Please let me see it. If you give permission I would be happy to post your work here on String under a gallery tag, either with your name or anonymously as you prefer.

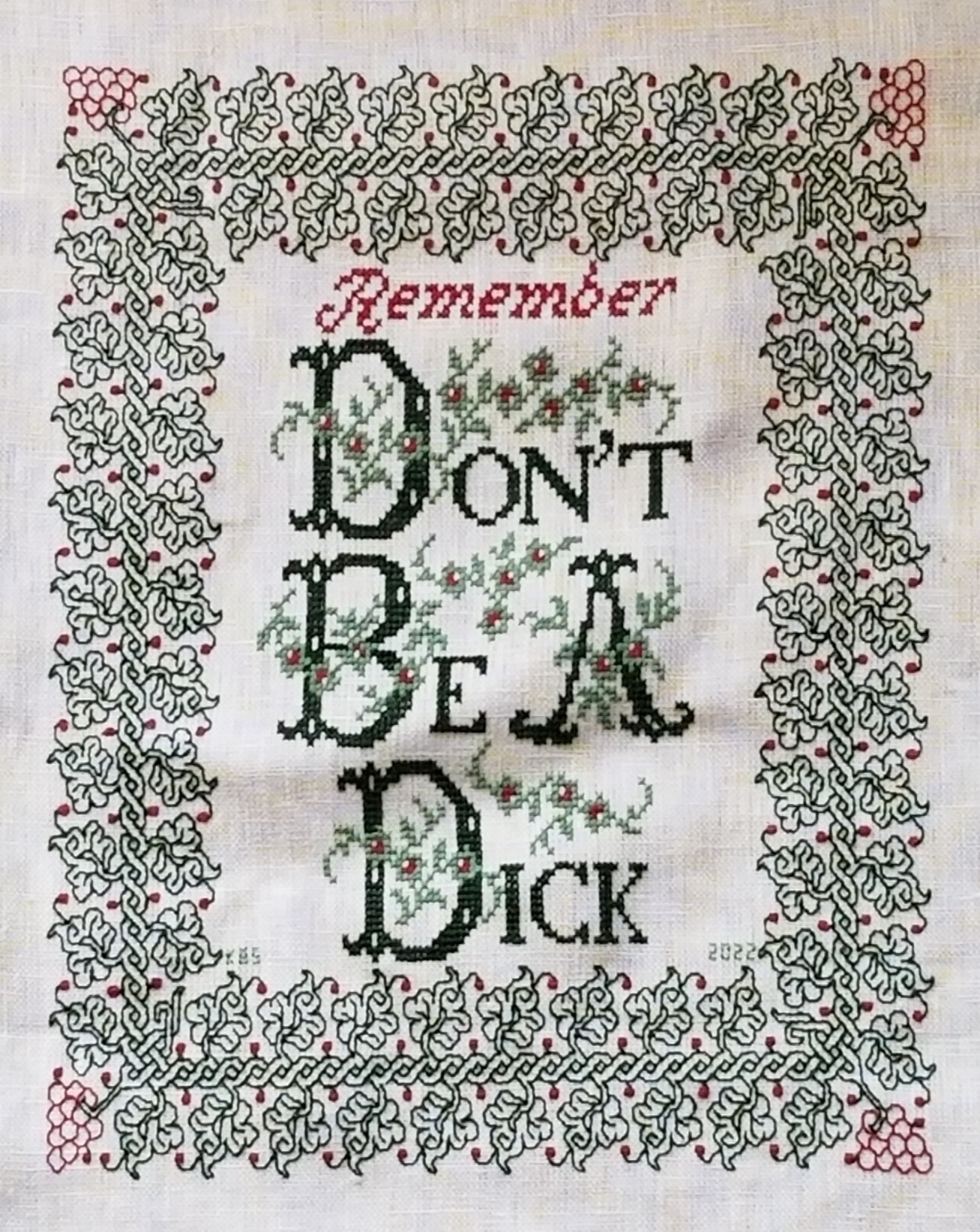

Just finishing up Don’t. I think the Mystery Neice will be happy with it. We worked together to pick out the colors, typefaces, and border design used, so there was ample recipient-input on this one.
I’m happy with it, too. Although I have to confess a bit of a mistake at the outset, which has necessitated a somewhat rueful kludge.
The original did not include “Remember.” Why is it there?
Because when I started stitching the border at the left center line, instead of starting it at the center of one of the sprigged spirals, I started with one of the spirals that grows a leaf. That de-centered the inscription north/south. I walked happily down the left edge, across the bottom, and up the right side. When I got to the top I noticed that (horrors!) to make my corner fit there would be larger space between it and the words than there is at the bottom. Nine units more, to be exact. So I thought about what I could put there. More flowers? Possibly. Another ornament? Again possible. But the more I thought about it, the more I wanted to NOT add mass on top which would draw attention to the lack of space at the bottom. So a word was the way to go.

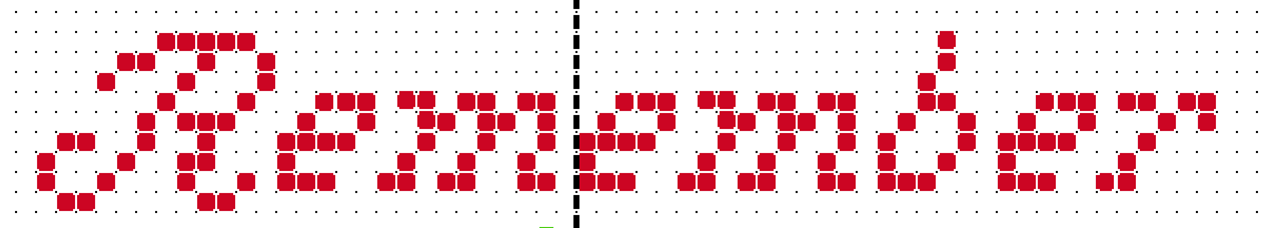

I decided on adding “Remember” and went pawing through alphabet resources to find something thin, elegant, and nine units tall – something that would fill space without adding too much bulk. The initial script R is from an antique Sajou booklet at the Patternmaker Charts site. The lower case letters needed to be smaller, and I found a good candidate in Creating Historic Samplers by Grow and McGrail – the same source I used for the lower case letters in the main area. It’s not a profoundly useful book, but it does have a section of beginners’ advice, plus some sample US Colonial era motifs, alphabets, and borders. Best of all for those just starting out, it’s very inexpensive on the used market.
Now on to the next – Grape Sideboard Scarf.
For the next project I’ve decided to use a well washed linen piece I picked up at a yard sale in Silver Spring, Maryland easily 42 years ago. It’s a dresser scarf, trimmed with a hand-turned hem secured by a simple crochet, with a crochet picot edge on the short sides. Based on the materials and back story I suspect it was cut down from a larger cloth and trimmed out sometime in the late 1930s or 1940s. I got it the same time as I got the larger finished linen piece that became my Everything is Worth Doing Well sampler, although they were not cut from the same source. Yes, it’s worn and a bit discolored from storage even before I got it, but it’s sound.
The stitchable area is about 16.5 inches x 28.5 inches (about 49.9 cm x 72.4 cm), and the thread count is roughly 32 threads per inch. That’s about16 units per inch using a 2×2 thread grid, with a total design area of 264 units x 456 units. That varies a bit across the piece, so I’m averaging measurements taken at several spots (penny method for easy thread counting here).
I’m going to stitch it in red, using a pattern I’ve recently redacted from a 17th century Italian cushion cover held in the Hermitage Museum (Accession T-2736 in case the link breaks). A thumbnail of the original is below. It’s about 40 x 48 cm, roughly 15.75 x 19 inches. No info on the thread count of the artifact.
Obviously I am going to maintain the dresser scarf’s edging. Also depending on the scale the design works up to I may only stitch to within 1.5 inches of the existing hems, then devise a coordinating sprouting edge to encircle the center field.
As far as the charted redaction went – this one was tricksy. There’s a major sub-sub-element that is off-grid; meaning that when I get to it (and write this here so I remember) I will have to “split the difference” on my evenweave, and shunt that bit over one thread.
Since this will be used as a protective placemat on my sideboard largely for opening the evening wine, the grape motif is appropriate. And I’ll use a DMC 6 ply floss, one of the garnets – 615 or 616, I haven’t decided yet on which one yet. I go for cotton instead of silk on this for washability because spills WILL happen.
The next step is to baste in my horizontal and vertical center lines, plus that 1.5 inch margin inside the hems. Then I begin, working center out.
