GIMP Charting Tutorial 106 – More Drawing Hints

By now everyone playing along should be able to draw. Here are some more methods and hints:

A way to erase: Select the Pencil tool from the Toolbox. In its settings window, choose

Mode: Color Erase

Now draw a new line on top of the segment you want to disappear. This is very useful for small touch-ups rather than wholesale deletions.

Another way to erase: Select the Eraser tool from the Toolbox (looks like a little piece of pink bubblegum). Set the brush size to something larger than the Circle(01) setting we use for drawing. Make sure the Hard Edge box is checked. Drag the eraser over the part that needs to go. Not quite as fine-tuned as the method above, but effective.

Yet another way to erase: Use one of the selection tools (the square, circle, lasso, wand or color select icons at the top of the Toolbox) to highlight the offending bit. Hit your delete key.

To flip (aka mirroring):

Select the bit you want to flip. <ctrl>C to copy and <ctrl>V to paste. The area selected will look all twinkly, and you’ll note the creation of a new temporary layer in your layer toolbox:


Now with the area to be flipped all twinkly, click on the Flip icon in the Toolbox:


Note that I’ve got the first option under Affect selected – that flips the entire (temporary) layer where the bit I just pasted lives. That flips my image over. Now comes a tricky bit. One would think that once the bit has been flipped, it can be easily dragged into place. Not reliably so. I’m not sure why, but switching to the Move icon (the four-way arrow) and trying to drag the bit around doesn’t work. What I usually do is after flipping the image so that it’s in the orientation I want, and while it’s still twinkly, I use <ctrl>X to cut it into the paste buffer, then paste it back into the drawing with <ctrl>V. NOW I can mouse over it until I get the movement icon (looks like a four-way arrow) to drag it into position.

Here’s the result of copying, pasting, flipping, then re-cutting, pasting and finally nudging into place a simple heart:


It sounds complex, but since most of the work is control-key or arrow presses (see tweaking, below), it’s really quite quick and easy.

To tweak alignment:

Sometimes when a pasted, rotated, or moved bit is inserted into the drawing it ends up being out of alignment on the grid. This is because the selection box is constrained in size so that even if its origin is on the grid, its termination is one pixel shy. However, fixing minor alignment problems is easy. Select your offending bit (the lower heart in the sample below), and use your keyboard arrow keys to nudge it into place. Again, like in Flip, I have the best success doing this by selecting, <ctrl>X to cut, <ctrl>Y to paste, then using the arrow keys to nudge the pasted bit into place. Please don’t ask me why the Move command doesn’t seem to work reliably for this. I haven’t a clue.

Rotating:

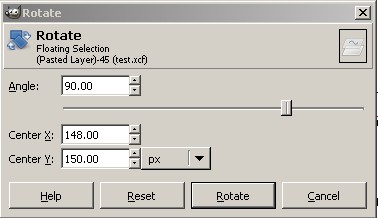

Again similar to Flip. Select the bit to be rotated and copy/paste it to create a temporary layer. Click on the rotate tool, then on the twinkly selected pasted area. The rotate dialog box will appear:


Rather than drive myself nuts trying to freehand rotate, I type my desired angle into the Angle box in the rotate dialog. In our case that’s an easy 90, 45 or 180 degrees. Usually 90. Then I click on the “Rotate” button in the Rotate dialog box.

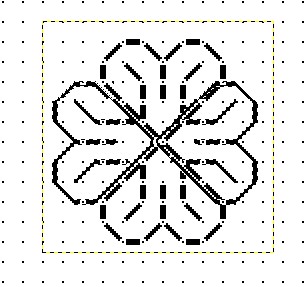

The selected bit will appear in its new orientation. For whatever reason, moving the image post rotation is better behaved than moving it post-Flip. I can usually click immediately on the rectangular selection tool (first in the Toolbox), then mouse around to get the move indicator, and arrow the still twinkly rotated selection into place. Here’s the just rotated image, prior to final tweaking:


And here’s the same image, after I’ve nudged the two new petals (at 9:00 and 3:00) into final position using my arrow keys.


Anchoring temporary or floating windows: Sometimes I end up with a floating or temporary window that I want to merge into my main pattern area. Easy. <ctrl>H nails it down.

Deselecting all selection boxes: Sometimes I want to pencil in a line, but click as I might, no line appears. What’s usually happened is that I’ve got a selection box active somewhere. <Shift><ctrl>A will turn off any that might be in use.

So ends this basic GIMP charting tutorial. We’ve only touched on some of the simplest options and commands available in GIMP, but covered most of the tools needed for this type of charting. I will leave color selection to you, but I’ll report back when I’ve figured out cloning via the Stamp tool. Please let me know if you have found this to be useful.
