The repeat on my Dance strip and corner is a bit unusual, and seems to be causing far more problems for stitchers than I anticipated. I designed it so it could be used both as a straight repeat and as a mirrored repeat, but that appears to be the source of the confusion. I’ve talked about the types of repeats and symmetries before, but I will recap briefly.
Here are some basic types of strip-pattern repeats:
- A straight repeat is one in which each unit is repeated “as is”. It is not flipped or mirrored, but marches on like the first line of Rs.
- A mirror (aka bounce) repeat works like the second line of Rs. There are two center lines, and the design mirrors itself between them.
- A meander, the design elements both mirror and flip.
- One-directional meander with mirroring but no flipping.
- One directional meander with flipping but no mirroring. (No example to hand).
- A tumble, the design elements rotate around a center point. (No example to hand).
There are other ways to construct a symmetrical repeat that elaborate on the tumble, introducing further mirroring or flipping, however I will say only the first four methods above are represented in European embroidery styles prior to around 1700, with types #1-#3 being by far the most common, and #4 being rare, but not unknown. And I can’t lay hands on a good example of #5. I haven’t done a comprehensive survey to determine when tumbles (#6) or their more complex derivatives begin to manifest but I can’t say that I recall seeing them on a museum artifact in the time range I pursue.
I also note that patterns can also include more than one type of symmetry, and layered symmetry pieces can become quite complex. There’s more on that in the earlier (and longer) post on repeats I mentioned before.

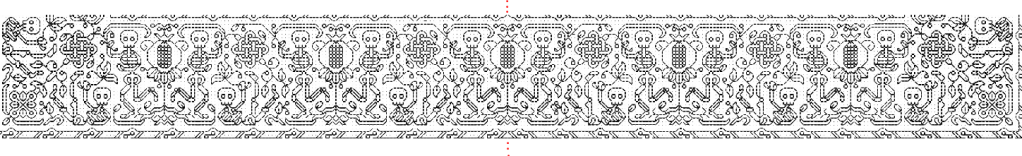

Now back to the pattern at hand. Here is the basic unit that makes up The Dance.

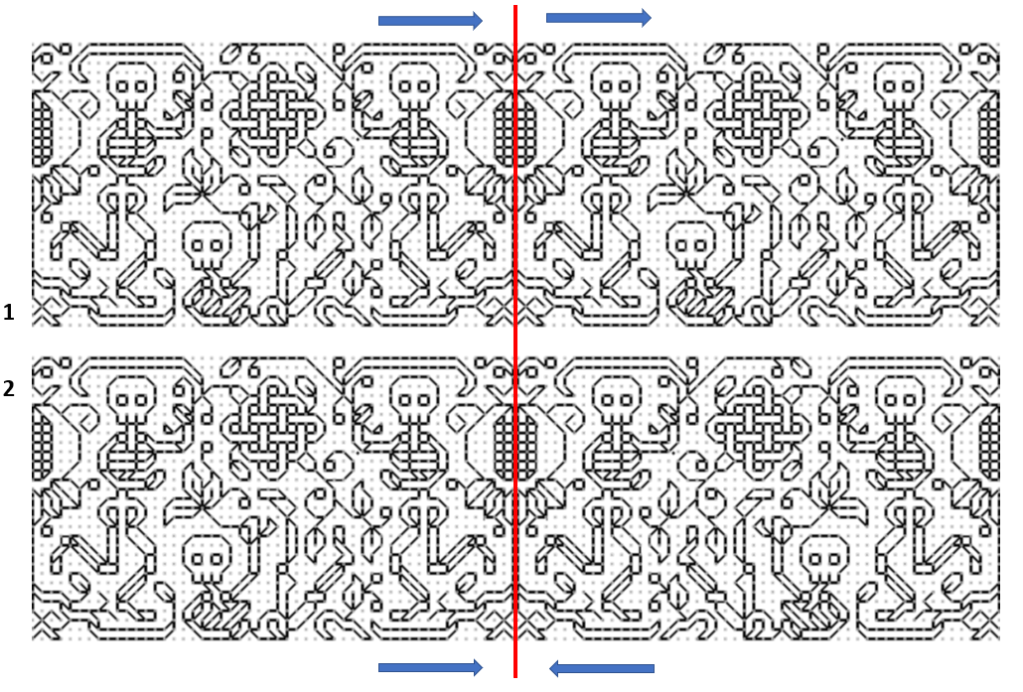

Notice that the three bony bois cavort in a playground defined by the center of the framing pomegranates. This unit can be combined to make a strip in one of two ways – As a straight repeat (#1), or as a bounce repeat (#2)
I’ve added the blue arrows to help identify the difference. Look at the fellow lolling on the ground. Above, he’s always facing the same direction. Below, he’s facing his mirror image.
To have a Type #2 bounce repeat that uses THE SAME framing device for both bounce points is at best extremely rare. Most use different devices as the two separators, like this little dolphin repeat from my ever-forthcoming book.
Now. What does this mean? Less authenticity, but more versatility. My current project uses the Dance centered around a single project axis. I use mirroring at ONLY the very center of my piece, with runs of straight repeat left and right until they meet up with a corner. Why? Why not? I liked the look:
But if I were working around a piece with a fixed circumference, like on a strip that was to be seamed into cuff, and there was not room for an even number of repeats, I might appreciate the ability to use an odd number of repeat units (along with type #1 symmetry), to better fit the area to be stitched.
I hope this helps.
Finally. After nine long years since the design challenge was issued and I responded with a pattern for the Flying Spaghetti Monster, a finish has been spotted in the wild.
Special thanks to stitcher Zelda Doyle, who had fun with the thing, then posted the result on Facebook and made my day. This photo is hers, of her own work, and reproduced here by permission. The chart for His Noodly Glory is here.
Have you done something fun with one of the pattern children and wish to add to our Gallery? Please let me know.
